Space Requirements For Forklift Clearances In Warehouse Pallet Shelf Aisles

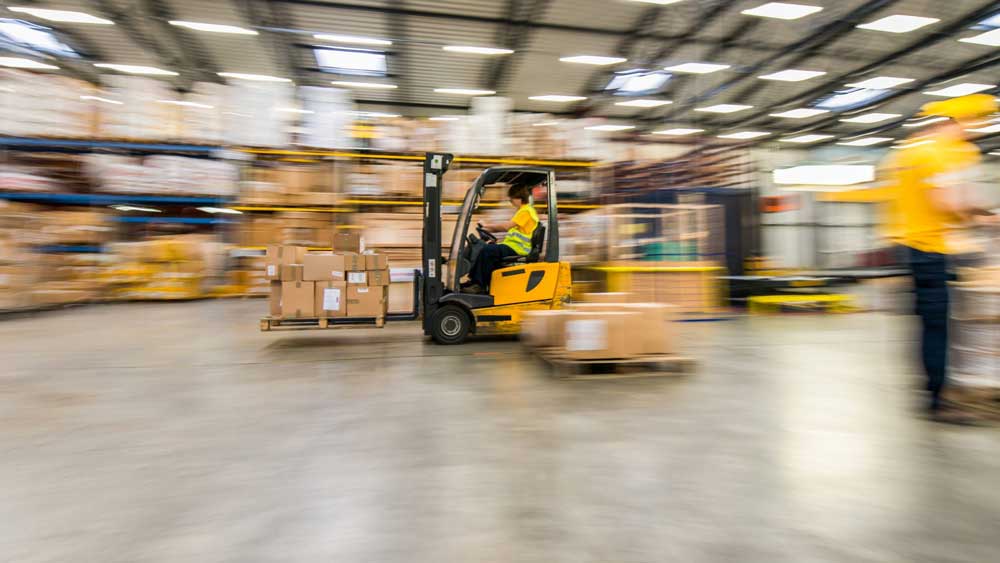

If we often work in the warehouse we will find that the warehouse in the daily operation will use forklifts to access some large goods. If the goods stored in the warehouse are generally large, then the frequency of forklifts will be higher.

Then some people may want to ask, if you want to use a forklift operation, then how much space should be reserved between the racks? This is a good question! So let me answer all your questions about forklift aisles next!

Space requirements for forklift clearances in warehouse pallet shelf aisles

When we design warehouse pallet racking aisles, forklift clearance requirements are a key factor in ensuring safe and efficient operation. So what follows are key considerations and recommendations for forklift clearance space requirements:

Basic Requirements for Aisle Width

The width of an aisle mainly depends on the following factors:

Forklift Type

Different types of forklifts have varying aisle width requirements. For example:

• Electric Pallet Truck: Requires the smallest aisle width, typically 2.4–2.7 meters.

• Counterbalance Forklift: Requires more turning space, usually 3.5–4.0 meters.

• Reach Truck: Needs a medium aisle width, typically 2.7–3.0 meters.

• Very Narrow Aisle (VNA) Forklift: Requires only 1.8–2.2 meters of aisle width but needs guide rails or inductive line navigation.

Forklift Clearance Design

To ensure safety and efficiency, aisle width should include additional clearance based on the forklift's turning radius, load dimensions, and safe operating distances:

• Operational Safety Clearance: Allow 30–50 cm of clearance on each side.

• Consideration of Load Dimensions: Load width usually occupies aisle space, so extra space should be reserved between the forklift and the load.

• Turning Radius: The aisle should accommodate the forklift's minimum turning radius.

Specific Calculation Formula

Aisle width can be approximately calculated using the following formula:

W=L+R+SW = L + R + S

Where:

• WW = Aisle width (in meters)

• LL = Maximum load size (including pallet width)

• RR = Forklift’s minimum turning radius

• SS = Operational safety clearance (sum of clearances on both sides)

Example:

If the load width is 1.2 meters, the forklift’s minimum turning radius is 2.0 meters, and the operational safety clearance is 0.4 meters:

W=1.2+2.0+0.4=3.6meters

Requirements for Special Operations

• Passing Operations: If two forklifts need to pass in the same aisle, the aisle width should include the combined width of both forklifts plus 50–100 cm for safety clearance.

• High-Level Racking: For narrow aisle designs, high-level racking operations require extra stability clearance to prevent collisions caused by forklift sway.

Practical Optimization Strategies

• Use of Guide Rails or Laser Navigation: For VNA forklifts, guide rails or inductive navigation can minimize clearance requirements.

• Regular Operator Training: Reduce human error to ensure safe operations even with minimal clearance.

• Simulate Forklift Paths: During the design phase, use CAD software or 3D simulations to verify the rationality of the aisle design.

Factors Affecting Forklift Aisle Width

Forklift Types and Specifications

Different types of forklifts have unique aisle width requirements, including:

• Powered Pallet Jack: These compact forklifts typically require a minimum aisle width of around 2.4 meters.

• Counterbalance Forklift: Needing a larger turning radius, these forklifts generally require an aisle width of 3.5 to 4.0 meters.

• Very Narrow Aisle (VNA) Forklift: Designed for narrow aisles, these forklifts can operate in spaces as narrow as 1.8 to 2.2 meters.

• Reach Truck: Commonly used for high-level racks, these forklifts require aisle widths of approximately 2.7 to 3.5 meters due to their larger turning radius.

Forklift Turning Radius

The turning radius of a forklift directly impacts aisle width. A larger turning radius demands a wider aisle. For instance:

• Small Forklifts: Suitable for narrow aisle operations due to their smaller turning radius.

• Large Forklifts: Require wider aisles because of their larger turning radius.

When designing aisles, it’s crucial to calculate the required width based on the forklift’s minimum turning radius, ensuring smooth navigation without colliding with racks or obstacles.

Rack Layout and Load Dimensions

• Load Dimensions: Pallet width and overall load size significantly affect aisle width. For example, pallets with widths of 1000 mm, 1200 mm, or larger determine the space needed for safe forklift operation.

• Rack Layout: The arrangement of racks (e.g., single-deep, double-deep, or high-level racks) influences forklift operating space. High racks often require wider aisles to accommodate vertical movement.

Operator Safety and Clearance

• Safety Clearance: Aisles should have sufficient safety space on both sides (generally 30–50 cm) to prevent collisions or pinching during forklift operations.

• Operational Efficiency: Aisle width must also ensure operator comfort, avoiding excessively narrow spaces that hinder forklift maneuverability.

Operating Environment and Rack Height

• Warehouse Environment: Poor ventilation or obstacles may necessitate wider aisles to avoid interference.

• Rack Height: Higher racks demand adequate aisle space to ensure forklifts can safely handle high-level operations.

Aisle Functionality and Transport Requirements

• Two-Way Aisles: For bidirectional forklift traffic, aisle width must accommodate the combined width of two forklifts plus safety clearance.

• One-Way Aisles: In single-direction operations, aisles can be narrower but still need sufficient space for turning and passing.

• Dynamic Transport Needs: Warehouses with high-speed, frequent material flow require wider aisles for flexible forklift movement, reducing delays.

Technology and Automation Equipment

• Automated Guided Vehicles (AGVs): In automated warehouses, AGVs typically require narrower aisle widths (e.g., 1.8–2.5 meters) but depend on precise navigation systems for safe operation.

• High-Frequency Operations: Automated systems demand precise aisle width design to enable frequent and efficient material handling.

Other Considerations

• Environmental Conditions: In cold or humid environments, such as cold storage facilities, forklift efficiency may be reduced, requiring adjustments to aisle width.

• Space Optimization: To maximize storage capacity, designers may opt for narrower aisles (e.g., using VNA forklifts). However, safety and operational efficiency must not be compromised when prioritizing space savings.

Common Forklift Aisle Widths

Hand pallet trucks

Manual pallet trucks are suitable for basic handling operations and have the lowest aisle width requirements. Typical aisle widths required are 2.0 to 2.4 meters, making them suitable for tight spaces.

Motorized Pallet Trucks

Electric pallet trucks are highly flexible and suitable for frequent pallet entry and exit operations, usually requiring aisle widths of 2.4 to 2.7 meters.

Counterbalanced Forklift Trucks

Counterbalanced forklift trucks usually have an aisle width of 3.5 to 4.0 meters due to the large turning radius required. This type of forklift is suitable for handling large loads and high frequency transportation scenarios.

Reach trucks

The reach trucks are designed for high racking operations and require aisle widths between 2.7 and 3.5 meters, allowing them to work flexibly in medium aisle widths.

Narrow Aisle Trucks (VNA)

Narrow aisle forklifts are designed for high-density storage and typically have aisle widths of 1.8 to 2.2 meters. These forklifts are usually coupled with rail or inductive line navigation to ensure safety and efficiency.

3-Way Forklifts

Three-way forklifts are used in Ultra-Narrow Aisle scenarios, where the required aisle width can be reduced to 1.5 to 1.8 meters to support efficient stacking and picking in confined spaces.

Conclusion

About the forklift aisle width of the content we end here, I hope our content can help you. If you have more questions about warehouse racking or warehouse space design, you are also welcome to contact us!
